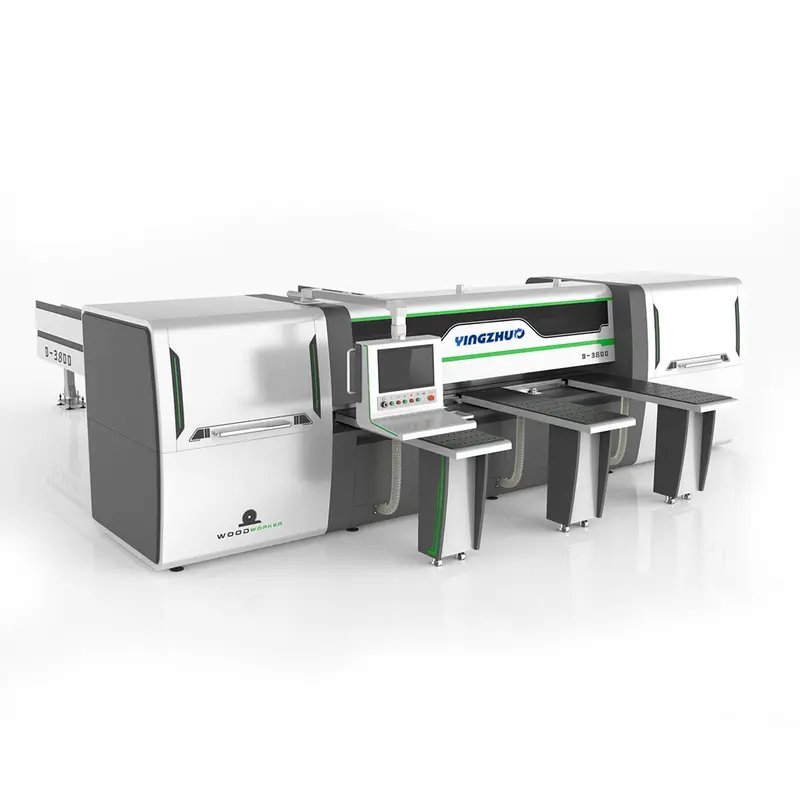

CNC beam saw
When it comes to cutting large materials with precision, the CNC Beam Saw is in a class of its own. Whether you're dealing with wood, panel materials, or other large-scale projects, this machine is designed to bring exceptional accuracy and speed to your production line, making your cutting processes smoother, faster, and more reliable than ever before.
Inquire Now
Email subscription
Join our newsletter to stay up to date on featuresand releases
Contact Us
product details
Max. Cutting length | 2850mm |
Max. Cutting width | 2850mm |
Max. Cutting height | 120mm |
Max. Saw blade height | 125mm |
Min. Workpiece size | 35*50mm |
Main saw blade motor power | 15kw |
Main saw blade diameter | 450mm*75mm |
Main spindle speed | 4000r/min |
Scoring saw motor power | 2.2kw |
Dia. of scoring main saw | 200mm*50mm |
Scoring main spindle speed | 6000r/min |
Feeding servo motor | 2kw |
Working speed of the saw frame | 5-100m/min |
Programmable push rod speed | 5-100m/min |
Machine size(L*G*H) | 6100*5900*1800mm |
Weight | 5200kg |
