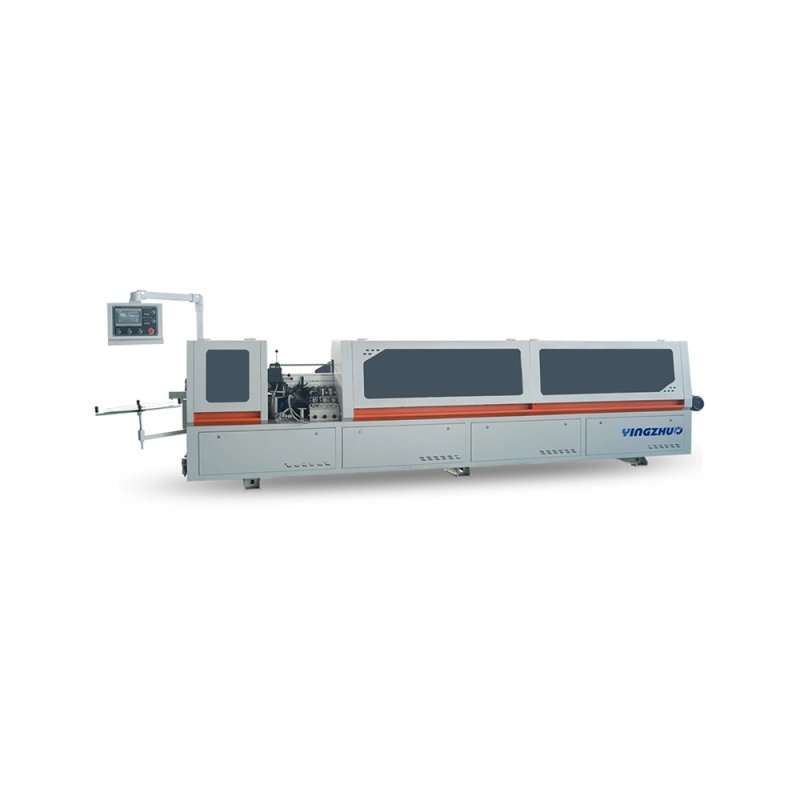

YZ-S265C
The YZ-S265C Edge Bander redefines edge processing with a fully integrated 8-stage workflow designed to transform raw panels into flawless, market-ready products. This advanced system streamlines operations through seamless automation, ensuring exceptional quality at every step—from pre-milling to final buffing.
Inquire Now
Email subscription
Join our newsletter to stay up to date on featuresand releases
Contact Us
product details
Online Message
Related products
product details
Model | YZ-S265C |
function | Pre-milling→Gluing→End trimming→Rough trimming→Fine trimming→Profilling→Scraping→Buffing |
Feeding speed | 18-23m/min |
Panel length | ≥80mm |
Panel width | ≥50mm |
Band width | 12-60mm |
Band thickness | 0.4-3mm |
Weight | 1800kg |
Total power | 15kw |
Pneumatic pressure | 0.6Mpa-0.8Mpa |
Machine size | 6000*900*1500mm |
