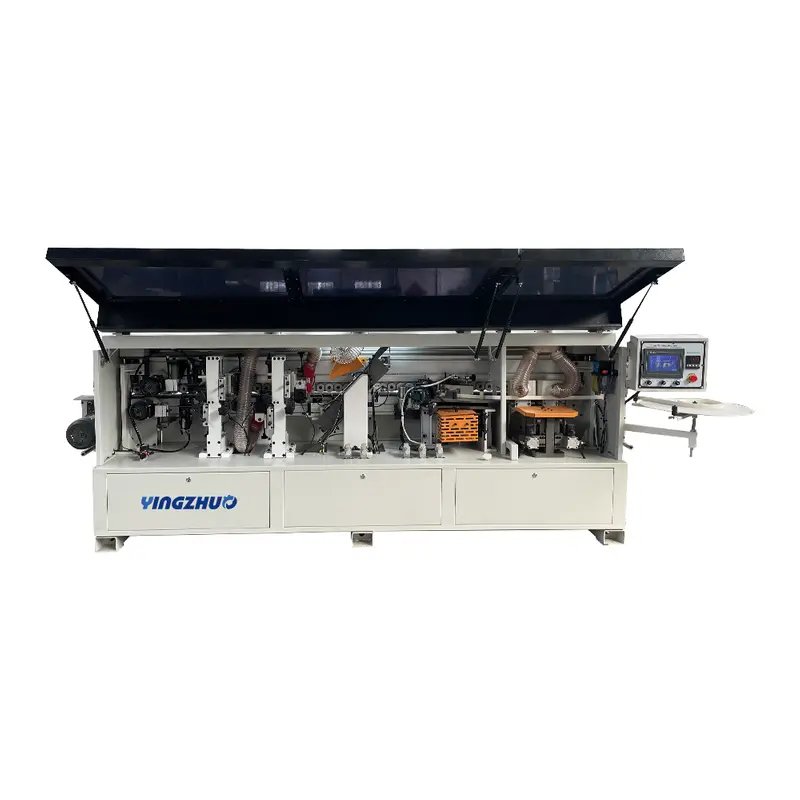

YZ-H2
The YZ-H2 Edge Sealing Machine redefines efficiency for woodworking professionals demanding uncompromised quality and versatility. Engineered for high-volume production, this advanced system excels in sealing edges for furniture, cabinetry, and decorative panels with exceptional precision.
Inquire Now
Email subscription
Join our newsletter to stay up to date on featuresand releases
Contact Us
product details
Online Message
Related products
product details
| Model | YZ-H2 |
| Function | Pre-milling→Gluing→End trimming→Fine trimming→Scraping→Buffing |
| Feeding speed | 16m/min |
| Panel length | ≥120mm |
| Panel width | ≥50mm |
| Band width | 12-60mm |
| Band thickness | 0.4-3mm |
| Weight | 1200kg |
| Total power | 15kw |
| Pneumatic pressure | 0.6Mpa-0.8Mpa |
| Machine size | 4000*800*1250mm |
