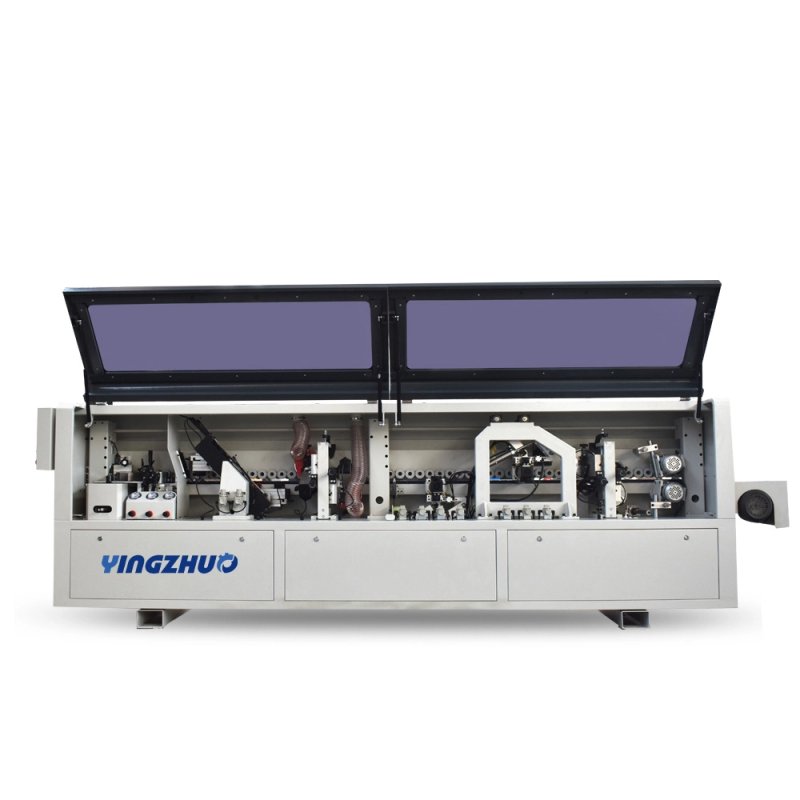

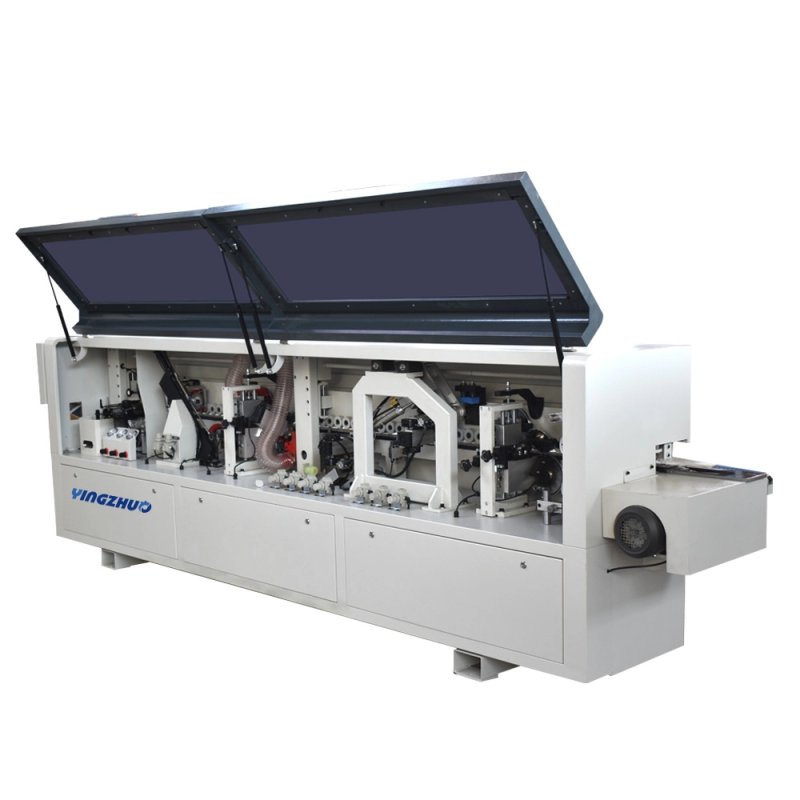

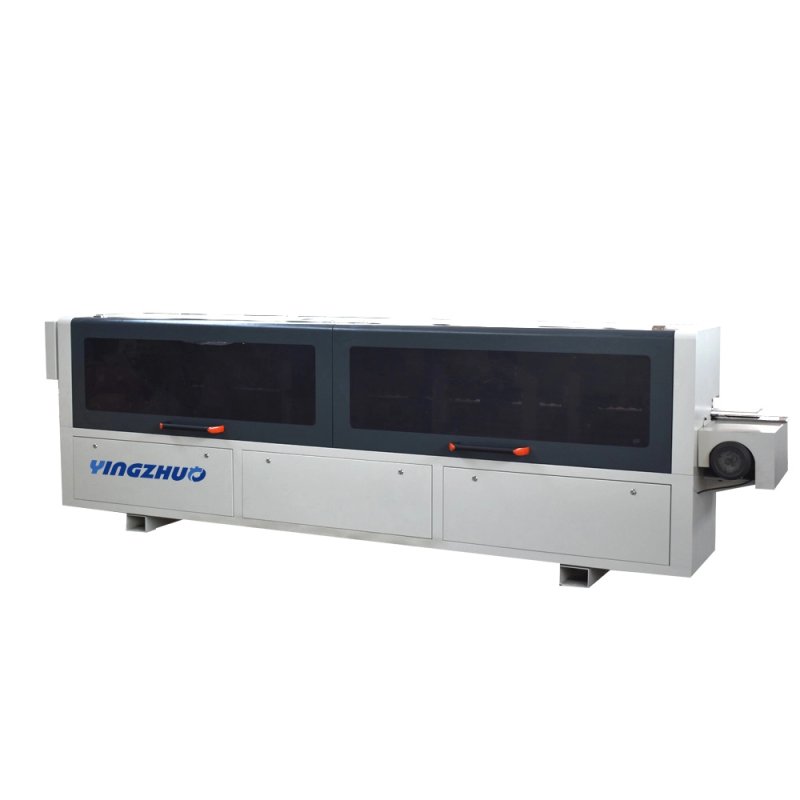

YZ-S4
The YZ-S4 is more than just a machine, it's your partner in creating flawless, high-value wood products. Designed for global manufacturers who demand versatility, speed and precision, this powerful edgebander is built to meet your unique needs.
Inquire Now
Email subscription
Join our newsletter to stay up to date on featuresand releases
Contact Us
product details
Online Message
Related products
product details
Model | YZ-S4 |
Function | Gluing→End trimming→Fine trimming→Profilling→Scraping→Buffing |
Feeding speed | 16m/min |
Panel length | ≥120mm |
Panel width | ≥50mm |
Band width | 12-60mm |
Band thickness | 0.4-3mm |
Weight | 1200kg |
Total power | 13.4kw |
Pneumatic pressure | 0.6Mpa-0.8Mpa |
Machine size | 4300*750*1250mm |
